MAXI MILLER PLUS with 12mm shaft / 30m / control unit with 5m cable

7.195,00

Plus 19% VAT
Delivery Time: not specified

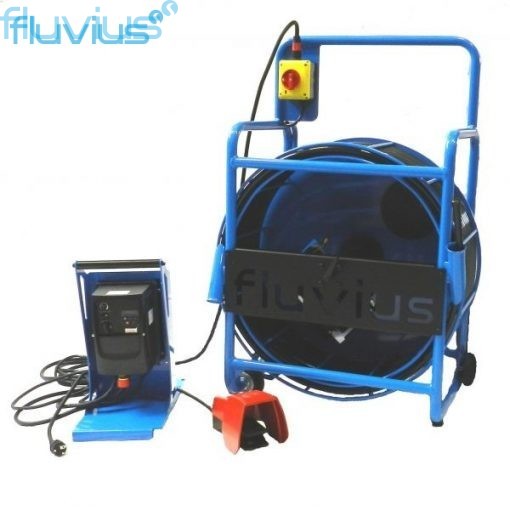

Maxi Miller with 5 m cable quick overview

  • The Maxi Miller with control unit and 5 meter cable allows the use of a 12 mm shaft in the smallest space.
  • The Maxi Miller PLUS is set up outside the room and controlled via the 5-metre cable with the foot pedal.
  • Suitable for the following applications: Sewer renovation in the in-house area and section renovation.
  • Wave strength 12mm wire wave – with reinforced PE wave sheathing.
  • Wave length 30 m
  • Shaft extension: can be extended by 15 meters or more with 12 mm shaft adapter or with 8 mm shaft can be extended by 15 meters.
  • Sturdy and robust tubular frame made of light aluminium.
  • Pipe diameter: from DN100 to DN200.
  • Motor power: 230 V (16 Amp fuse required)
  • Speed infinitely variable up to 1400 rpm
  • Scope of delivery: Basic unit incl. shaft, motor drive and control unit with foot pedal.
    Motor data:
  • Voltage: 230 V
  • Power consumption: 1400 W
  • Speed infinitely variable up to 1400 rpm
  • Frequency: 50 Hz
  • Current strength: 16 Ampere

Fluvi Miller General Overview

Drive:
The Fluvi Miller devices: Micro, Mini, Midi, and Maxi are powered by a 230 Volt motor (normal socket), the Maxi Miller Power Plus is powered by a 400 Volt motor.

Motor speed:
Depending on the device, infinitely variable speed regulation up to 1400, 1600, 1800 or 3000 rpm is possible.

Shaft diameter:
The different device sizes are offered with shaft diameters of 8mm, 12mm and 18mm.

Low operating costs:
The unit only consumes power when the motor is running, no additional power is needed, e.g. for a compressor.

Versatility:
The Fluvimillers allow cleaning, milling, cutting, polishing and brushing with one machine, the different tools are available individually and can all be operated with one unit.

Construction:
The Fluvi Miller units combine all functions in one unit: motor, control, drive shaft with shaft basket and transport wheels.
Robust and solid workmanship as well as a shaft cage with ball bearings are part of the basic equipment.

Equipment:
All units are portable or equipped with castors. The Midi, Maxi and Maxi Power Plus units are equipped with a staircase slide guard to facilitate transport over stairs.

Safety:
Due to the protected drive shaft there is no risk of injury to the user (no special gloves required) and damage to the pipes to be rehabilitated is avoided.

Precision:
The use of a commercially available camera during operation enables precise work.

Operation:
The simple control via a foot pedal makes operation of the shaft child’s play. The protected shaft allows pressure to be exerted without it twisting open in the pipe.

Flexibility:
The shaft can be extended by 5m, 10m, 15m or 20m, depending on the device size, also with reinforced shaft casing.

Short service life:
Possible shaft damage can be repaired by the user in a short time by shortening the shaft directly on the construction site.
