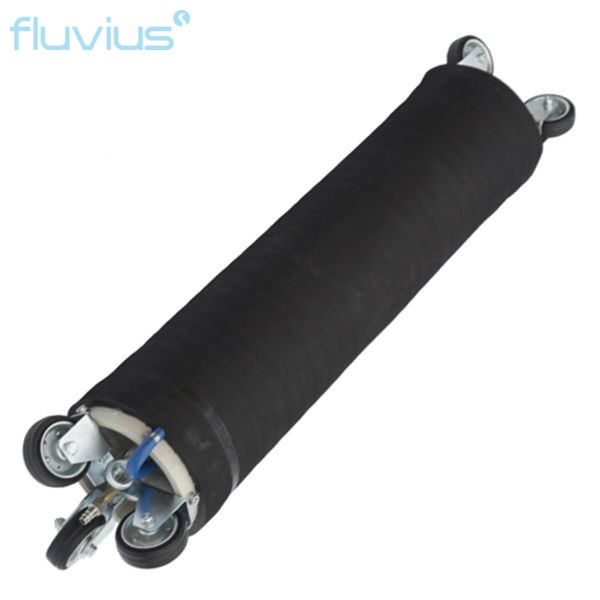

Short packer Sava

Short description short packer Sava

Short packers are suitable for the partial rehabilitation of pipes in sewer and pipe rehabilitation, where a sewage flow must be ensured.
A short construction of maximum 100cm facilitates the handling with the loaded packer.
Maximum passage sizes allow constant flow during the curing phase.
The use of (PPH) homo-polypropylene makes the core (passage) temperature resistant, chemical resistant, abrasion resistant, stable, expandable and break-proof at the same time.
With an operating pressure of 1.5 or 2.0 bar, uniform pressing of the short liner is ensured.

Equipment:
-Stable PPH core
-Double layer replaceable rubber cover made of NBR-rubber
-Compressed air connection: Quick coupling
-Zinc plated drawbar eye
-Wheel system for precise positioning of the short liner
-Large passage
-Short design

SKU: N/A Category:



ART. NO. NOMINAL SIZE AREAS OF APPLICATION REQUIRED
FILL PRESSURE
(BAR)		 WEIGHT (KG) RUBBER PART LENGTH
(MM)		 DEFLATED PACKER BYPASS
diameter
(MM)
MIN. DIAMETER
(MM)		 MAX. DIAMETER
(MM)		 DIAMETER
(MM)		 LENGTH
(MM)
76646 15-20 x 0.8 m 150 200 2 6.3 800 115 960 80
76647 25-30 x 0.8 m 250 300 2 12.8 800 205 1010 160
76821 30-35 x 0.8 m 300 350 1.5 17.2 800 250 1010 200
76648 35-40 x 0.8 m 350 400 1.5 19.1 800 305 1010 260
76649 45-50 x 0.8 m 450 500 1.5 29.7 800 380 1010 325
78247 60-70 x 0.97 m 600 700 1 50.2 970 465 1180 390

Additional information

length

800 mm, 970 mm
nominal size

150 – 200 mm, 250 – 300 mm, 300 – 350 mm, 350 – 400 mm, 450 – 500 mm, 600 – 700 mm
